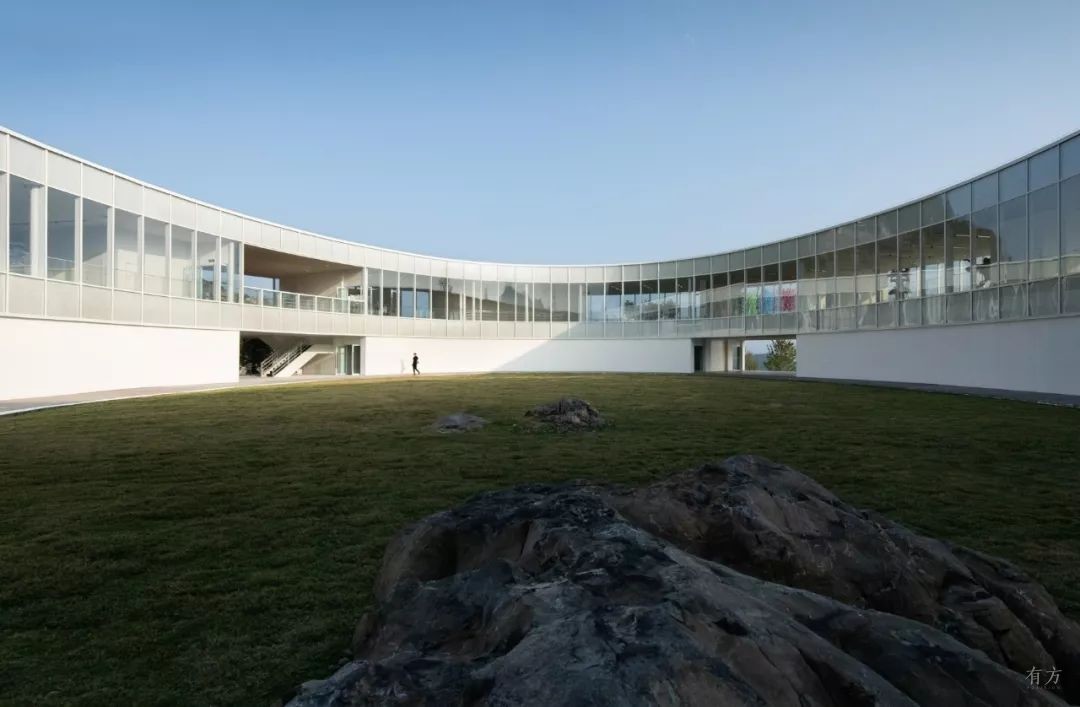

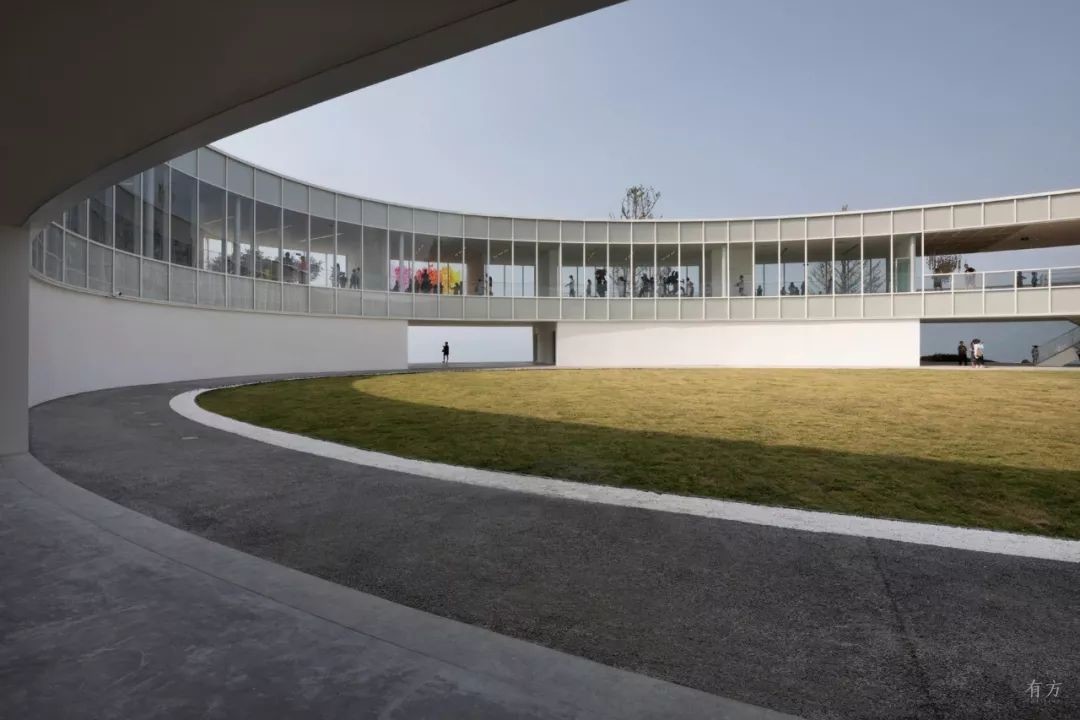

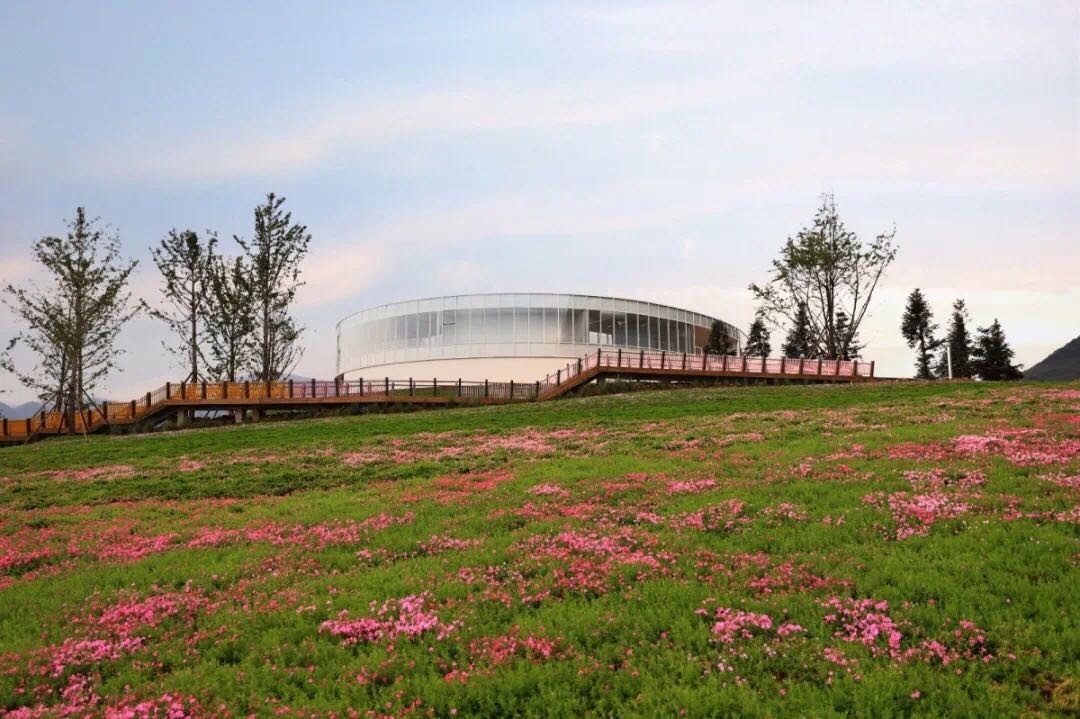

仙女山美术馆是LAVA在中国完成设计和建造的第一座建筑,是一座有着绝佳地理位置和使用体验的美丽的艺术场地。

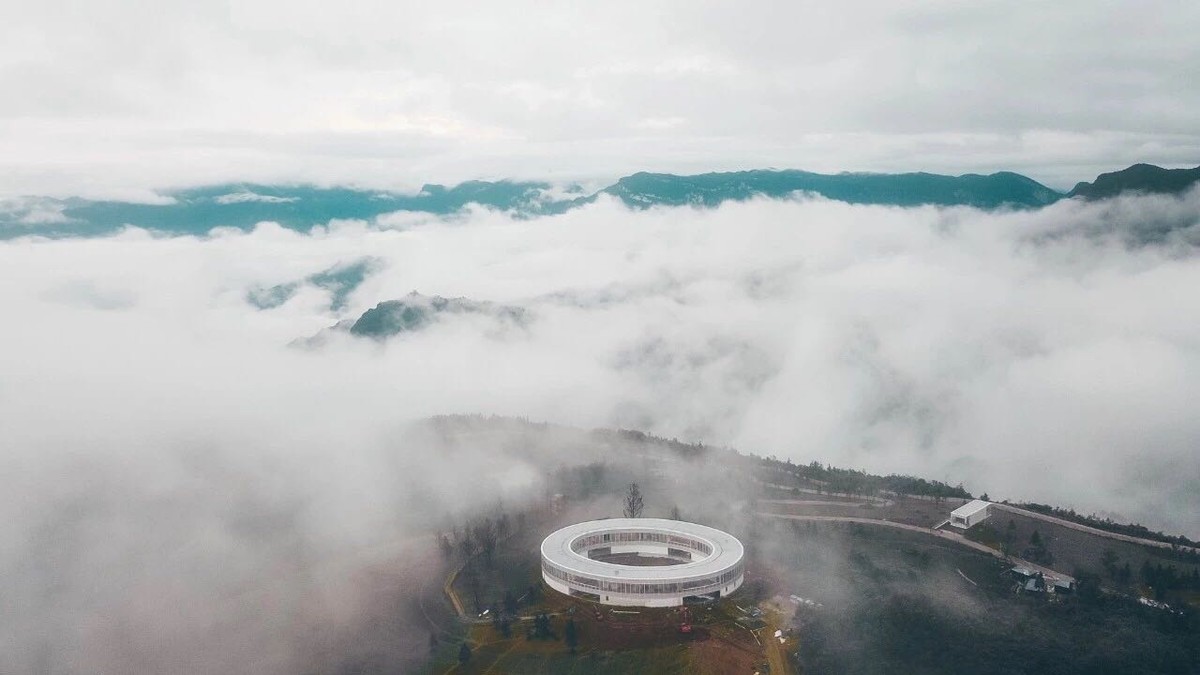

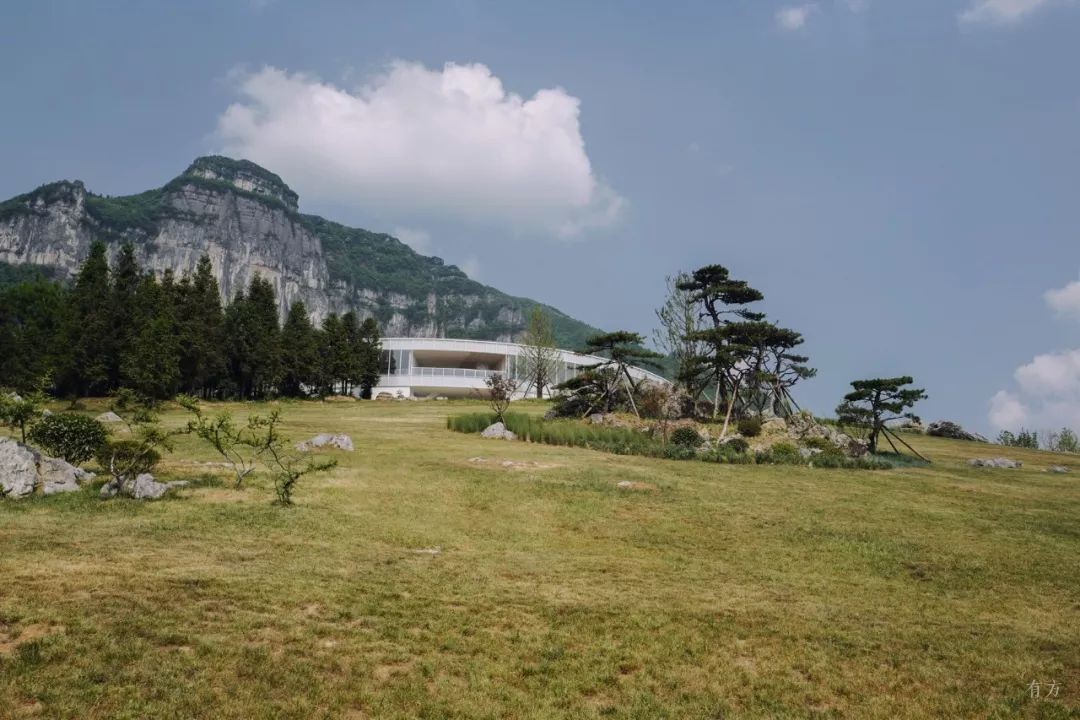

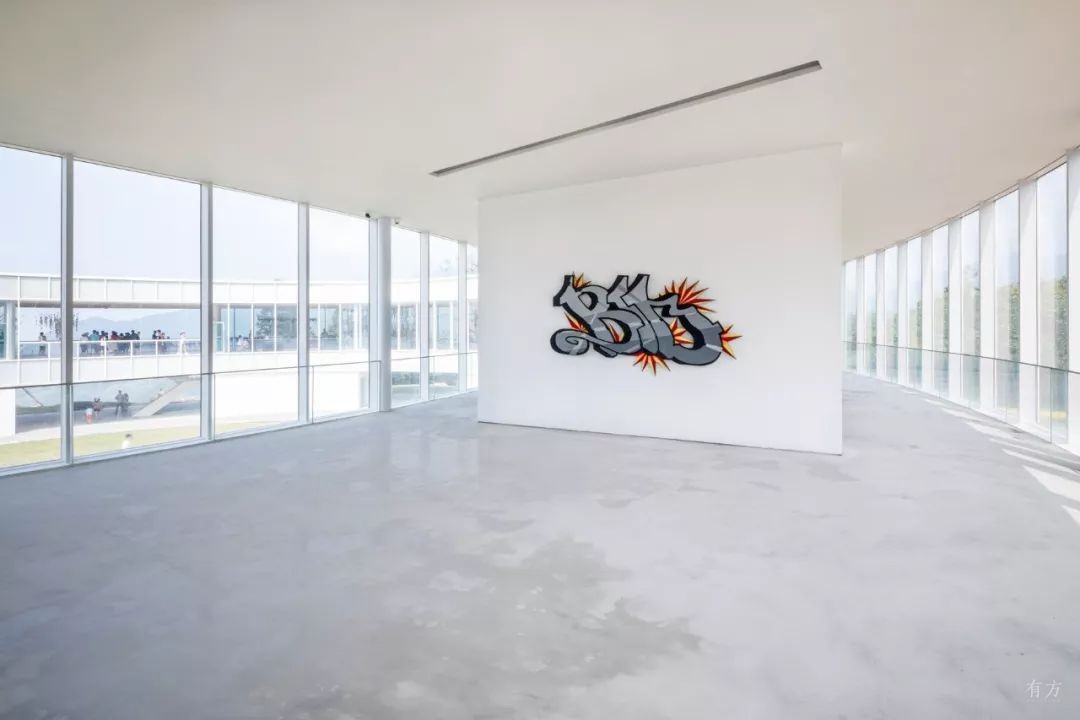

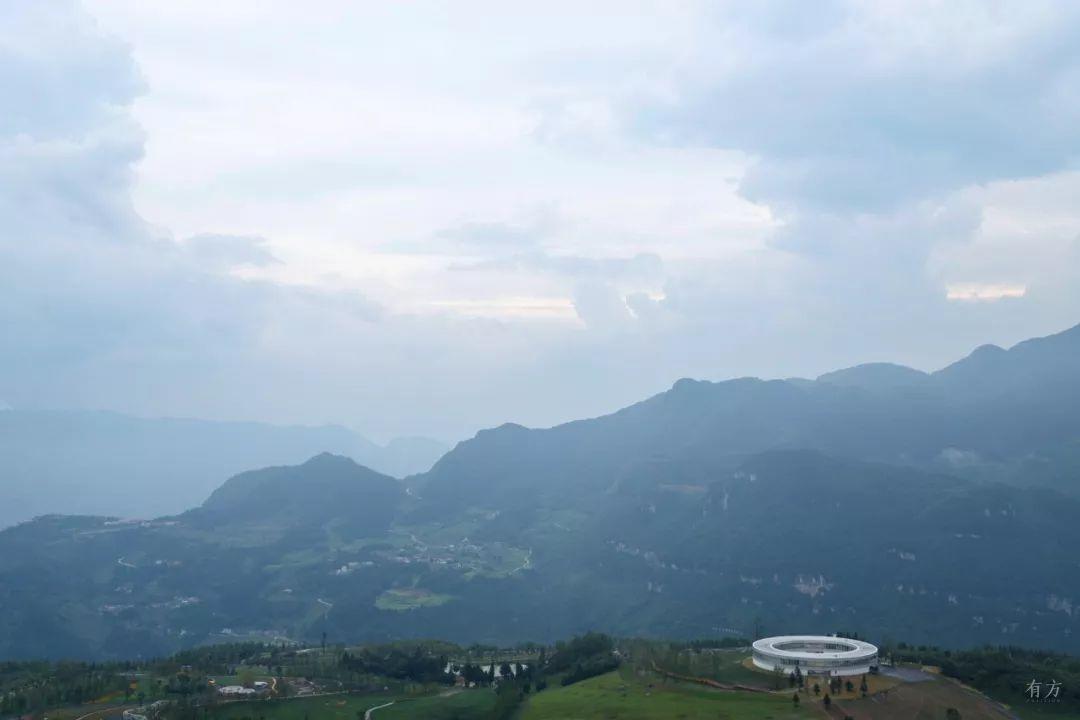

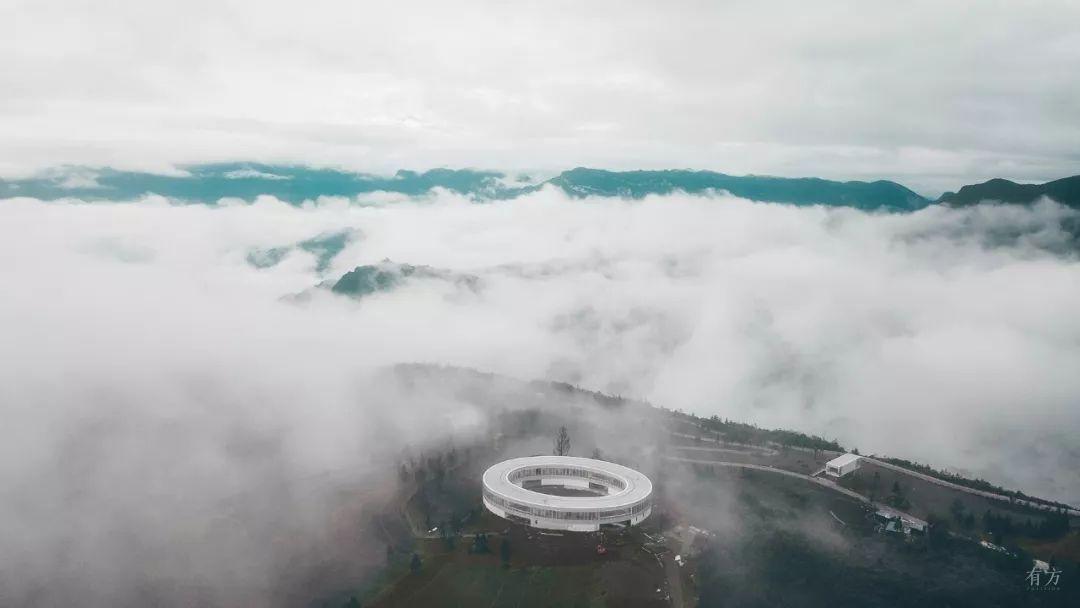

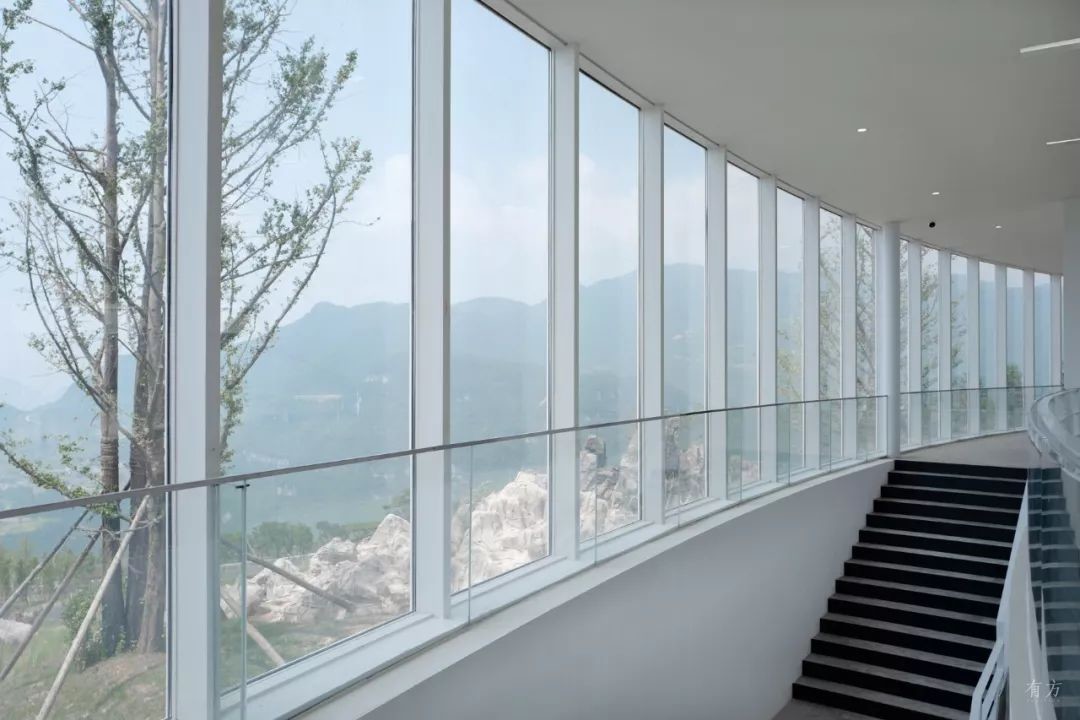

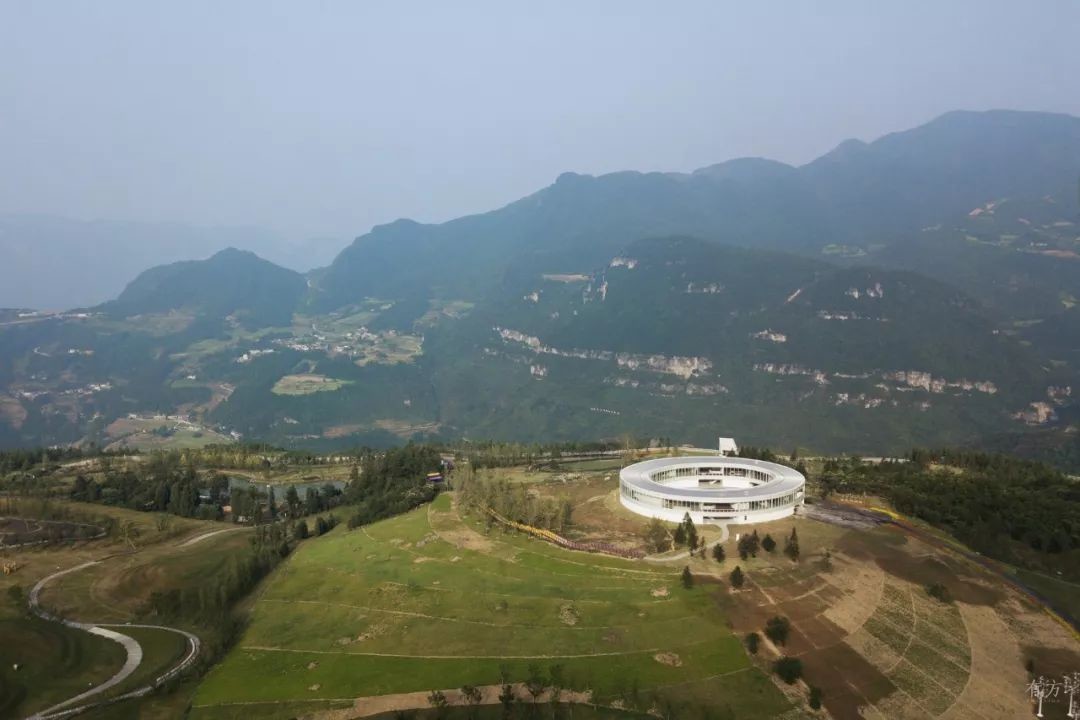

这座位于山间的优美建筑由2层9m高的钢结构组成,结构工程师利用展厅布展所需的背景墙形成径向的抗侧力体系,由此带来了外侧仅用于承担竖向荷载的柱子的直径压缩到了惊人的250mm。此外,巧妙的布置次梁把雨水管藏在展墙背后也是一个有趣的处理,这使得建筑的立面上没有任何破坏性的元素。这个场地内还有LAVA参与建造的其他两组建筑,也充满了对环境的尊重和对现代建筑理想的追溯。
已经建成并投入使用。

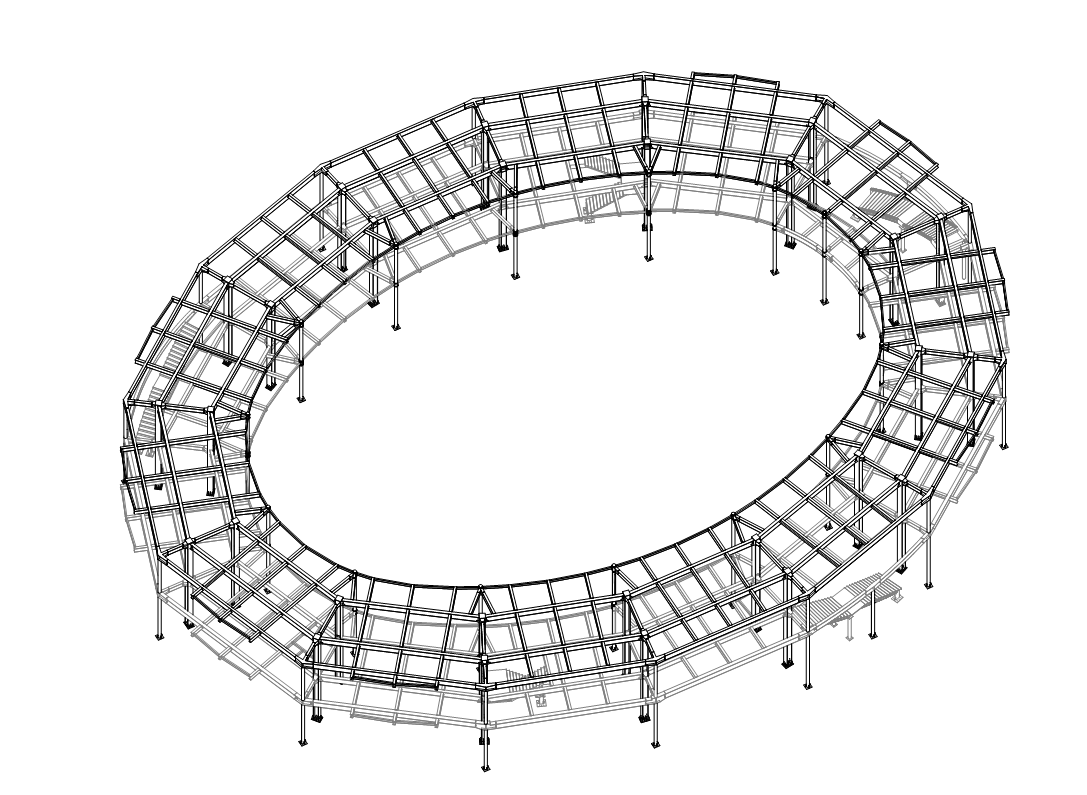

结构形式:钢框架(特殊钢框架)+摇摆柱。
建筑师: C+ Architects
结构抗侧力信息:地震:6度区
位于:中国重庆市
本文部分图片来自C+Architect事务所,有方,谷德及仙女山美术馆开发建设单位。
业主:重庆仙女山美术馆
建筑师:程艳春 [C+ Architect]
结构工程师:张锦斌,汤理达
Fairy Mountain Art Museum is the first building completed and designed by LAVA in China. It is a beautiful art venue with an excellent location and user experience.
Has been completed and put into use.
Structural form: steel frame (special steel frame) + swing column.
Architect: C+ Architects
Structural lateral force resistance information: Earthquake: 6 degree zone
Chongqing, China
The Fairy Mountain Complex consists of a group of steel structures, namely Sun Garden, Glass Restaurant and Tufang Restaurant. With a total construction area of approximately 5,000 square meters, it is a collection of works that pay tribute to classicism in a simple contemporary design.

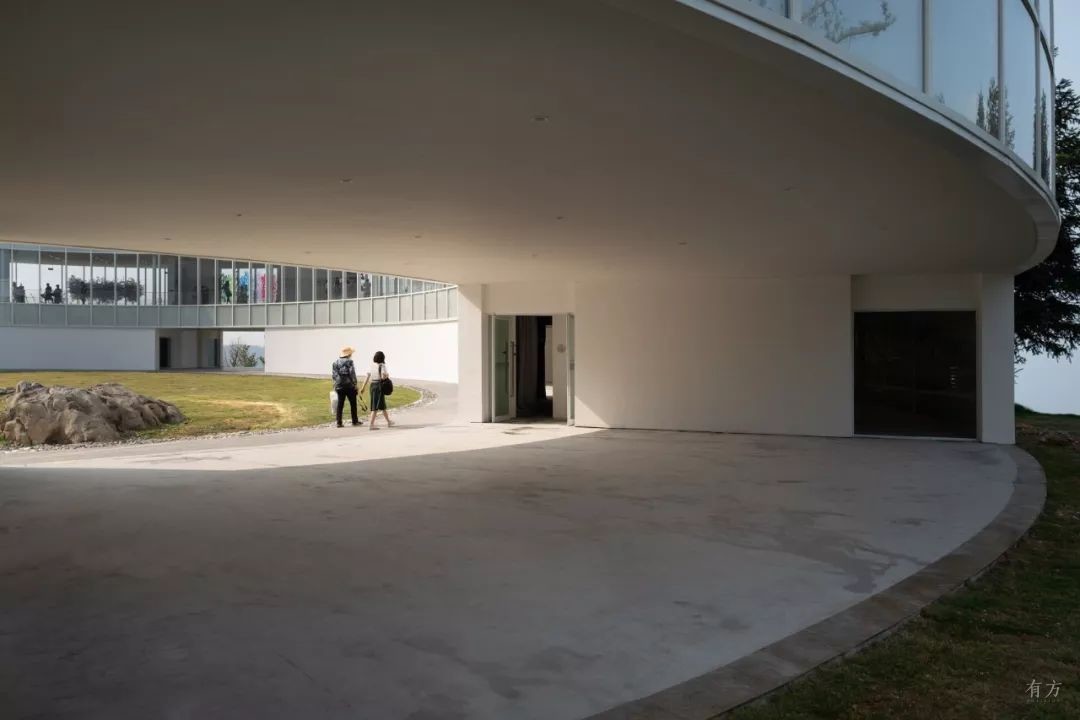

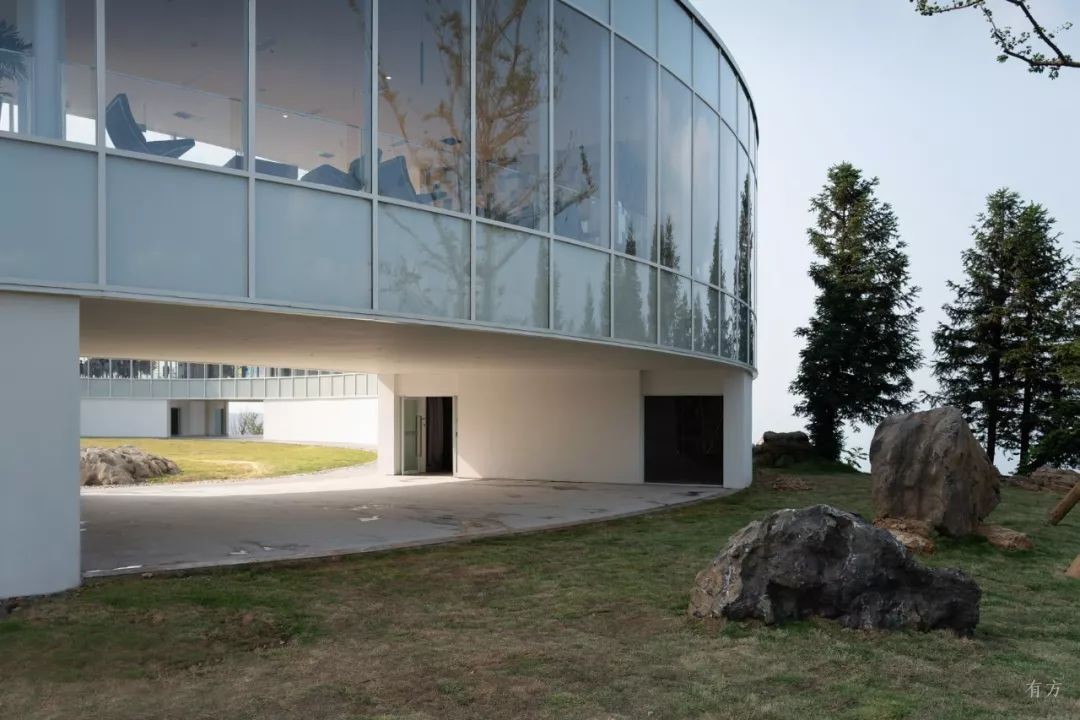

In the structural scheme, in order to be unified with the architectural style, the Sunlight Garden adopts a combination design of swing columns and moment frames. The swinging column has a height of only 2 mm and a diameter of only 250 mm. The glass restaurant is partially suspended in order to create a space without a column and no line of sight cantilevering about 6 meters.
